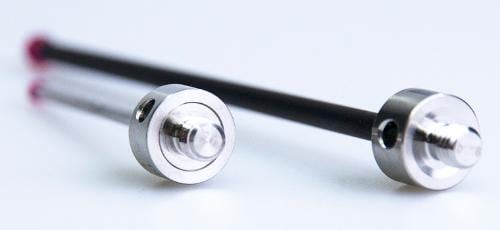

- M5(4.095)

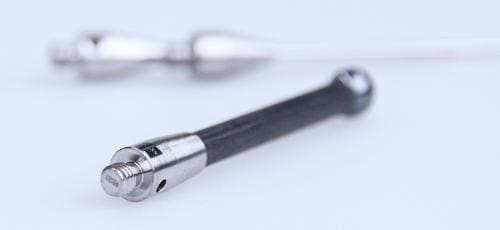

- M3 XXT(640)

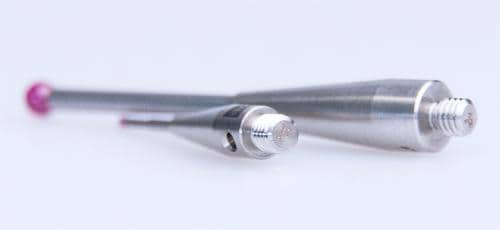

- M3(1.455)

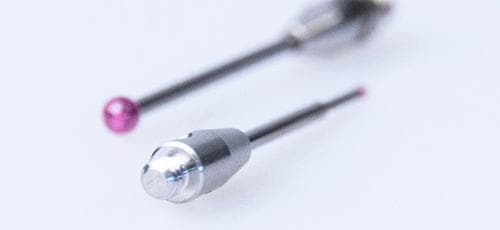

- M2(914)

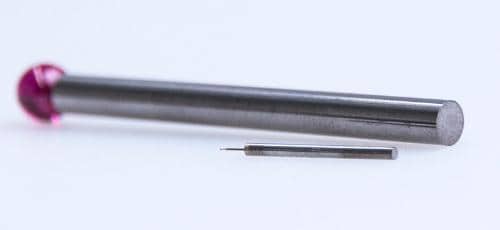

- Without Thread(28)
- Form, Surface, Contour(131)
- Clamping Components(104)
ZEISS styli are available in a wide variety of designs. A large portfolio of standard styli for M2, M3, M3XXT or M5 threads is available. For these styli, different stylus elements made of different materials and different shaft designs are available. Furthermore, there are also styli without thread, as well as special styli for form, contour and surface measurements available.
Connection Type
product type
Ø Sphere (DK)
Length (L)
Styl. Tip Mat.
Shaft Mat.
Stylus Type
Stylus Tip
Meas. Len.
2. Meas. Len.
Ø Shaft (DS)
Ø2 Shaft (DSE)
Stylus M2, DK2,5 L25
626102-5855-025
- Ø Sphere (DK)
- 2,5 mm
- Length (L)
- 25,0 mm
- Ø Shaft (DS)
- 1,5 mm
- Meas. Len.
- 19,0 mm
- Styl. Tip Mat.
- Si-N
- Shaft Mat.
- Tung. Carb
54,00 €Sales tax not included
Shipment within: > 30 days
Stylus M5, DK10 L113
626105-1025-113
- Ø Sphere (DK)
- 10,0 mm
- Length (L)
- 113,0 mm
- Ø Shaft (DS)
- 6,0 mm
- Meas. Len.
- 100,0 mm
- Styl. Tip Mat.
- Si-N
- Shaft Mat.
- Tung. Carb
102,00 €Sales tax not included
Shipment within: > 30 days
Stylus M3, DK1,5 L40
626123-0144-040
- Ø Sphere (DK)
- 1,5 mm
- Length (L)
- 40,0 mm
- Ø Shaft (DS)
- 1,0 mm
- Meas. Len.
- 34,0 mm
- Styl. Tip Mat.
- Ruby
- Shaft Mat.
- Tung. Carb
39,00 €Sales tax not included
Shipment within: > 30 days
Stylus M2, DK2 L43
626102-0244-043
- Ø Sphere (DK)
- 2,0 mm
- Length (L)
- 43,0 mm
- Ø Shaft (DS)
- 1,0 mm
- Meas. Len.
- 37,0 mm
- Styl. Tip Mat.
- Ruby
- Shaft Mat.
- Tung. Carb
41,00 €Sales tax not included
Shipment within: > 30 days
Stylus M5, DK5 L112
626105-0514-112
- Ø Sphere (DK)
- 5,0 mm
- Length (L)
- 112,0 mm
- Ø Shaft (DS)
- 3,5 mm
- Meas. Len.
- 102,0 mm
- Styl. Tip Mat.
- Ruby
- Shaft Mat.
- Tung. Carb
74,00 €Sales tax not included
Shipment within: > 30 days
Stylus M5, DK12 L159
626105-1225-159
- Ø Sphere (DK)
- 12,0 mm
- Length (L)
- 159,0 mm
- Ø Shaft (DS)
- 6,0 mm
- Meas. Len.
- 146,0 mm
- Styl. Tip Mat.
- Si-N
- Shaft Mat.
- Tung. Carb
124,00 €Sales tax not included
Shipment within: > 30 days
Stylus M5, DK10 L150, ThermoFit
626105-1021-150
- Ø Sphere (DK)
- 10,0 mm
- Length (L)
- 150,0 mm
- Ø Shaft (DS)
- 6,0 mm
- Meas. Len.
- 137,0 mm
- Styl. Tip Mat.
- Si-N
- Shaft Mat.
- Carbon Fiber
150,00 €Sales tax not included
Shipment within: > 30 days
Stylus M3 XXT, DK1 L18 stepped
626103-0045-018
- Ø Sphere (DK)
- 1,0 mm
- Length (L)
- 18,0 mm
- Ø Shaft (DS)
- 1,0 mm
- Meas. Len.
- 9,0 mm
- Ø2 Shaft (DSE)
- 0,8 mm
- 2. Meas. Len.
- 5,0 mm
- Styl. Tip Mat.
- Si-N
- Shaft Mat.
- Tung. Carb
52,00 €Sales tax not included
Shipment within: > 30 days
Stylus M5, DK1,5 L53
626105-0144-053
- Ø Sphere (DK)
- 1,5 mm
- Length (L)
- 53,0 mm
- Ø Shaft (DS)
- 1,0 mm
- Meas. Len.
- 43,0 mm
- Styl. Tip Mat.
- Ruby
- Shaft Mat.
- Tung. Carb
49,00 €Sales tax not included
Shipment within: > 30 days
Stylus M2, DK0,2 L9 stepped
626102-5144-009
- Ø Sphere (DK)
- 0,2 mm
- Length (L)
- 9,0 mm
- Ø Shaft (DS)
- 1,0 mm
- Meas. Len.
- 3,0 mm
- Ø2 Shaft (DSE)
- 0,15 mm
- 2. Meas. Len.
- 3,0 mm
- Styl. Tip Mat.
- Ruby
- Shaft Mat.
- Tung. Carb
79,00 €Sales tax not included
Shipment within: > 30 days

The different shaft materials
