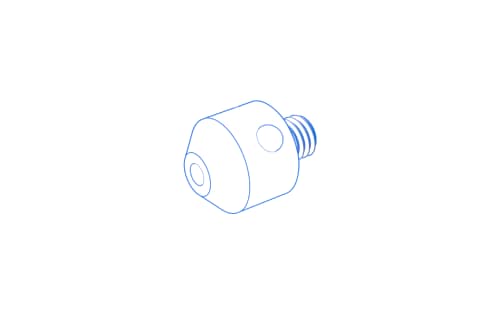

- Adapters(6)

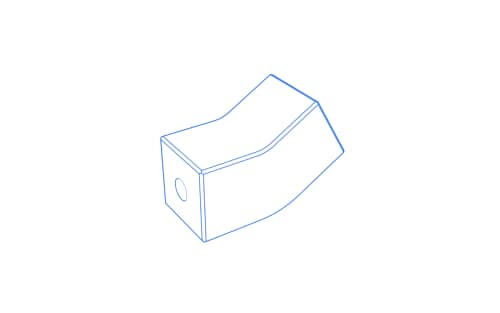

- Angles(155)

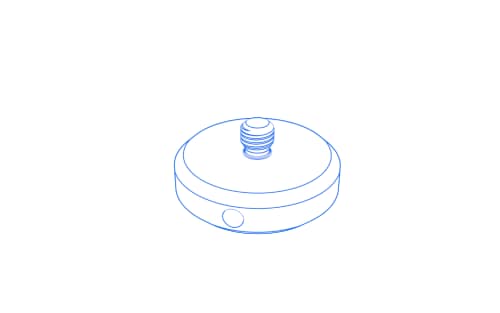

- Counterweights(6)

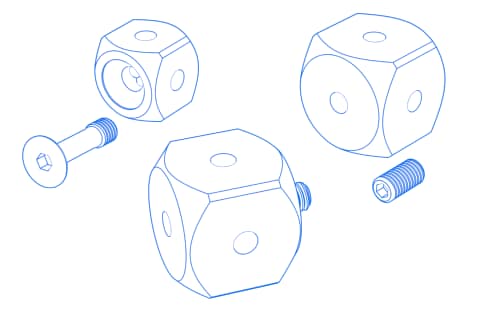

- Cubes(7)

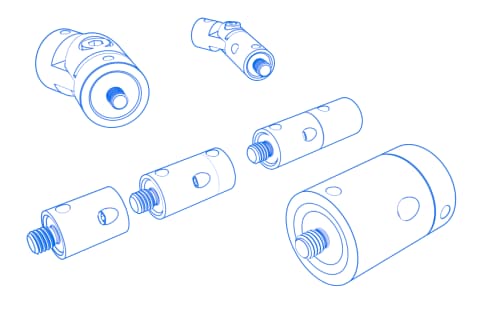

- Knuckles and rotary elements(14)

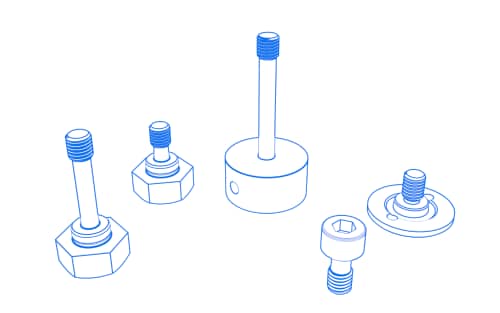

- Screws(11)

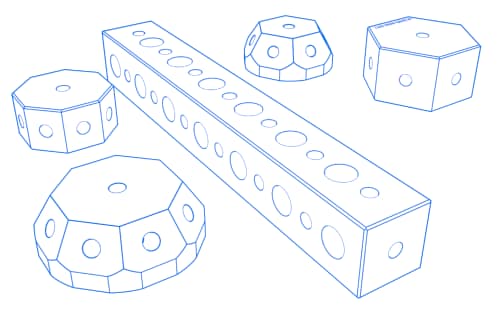

- Multi sided cubes(6)

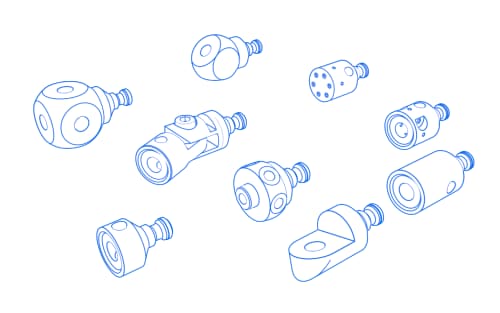

- Inserts with cone adapter(12)

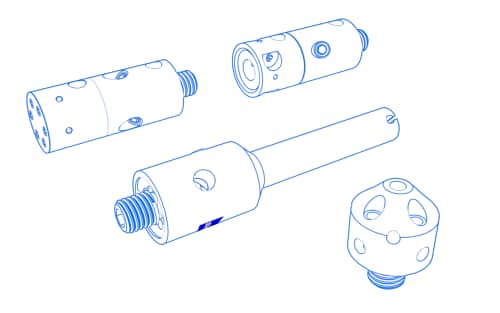

- Styli holders(4)
- M3 XXT(33)
- M3(3)
- M2(9)
- M5 Pro(12)
M5
M5 connecting elements are primarily used in VAST stylus systems. Choose from a range of M5 threaded fasteners: Cone Mount, Cone Inserts, Rotatable Star Elements and Angles, Fixed Angles and Cubes, and Kinked and Rotated Elements.
626107-6280-120
- Product Type
- Star Element
- Length (L)
- 10,0 mm
- Angle 1 (W1)
- 90,0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 7,0 mm
- Ø Shaft (DS)
- 2,0 mm
- Application
- Connect
- Ø Body (DG)
- 11,0 mm
- Weight
- 4,0 g
90,00 €excl. VAT
Available
626105-6280-030
- Product Type
- Rotary Elements
- Length (L)
- 30,0 mm
- Material
- Titanium
- Connection Type
- M5
- Application
- Connect
- Ø Body (DG)
- 11,0 mm
- Weight
- 11,33 g
- Connection Type Out
- M5
92,00 €excl. VAT
Available
626107-6022-226
- Product Type
- Angle
- Length (L)
- 43,0 mm
- Angle 1 (W1)
- 90,0 °
- Angle 2 (W2)
- 10,0 °
- Material
- Titanium
- Connection Type
- M5 Pro
- Measurement Length (ML)
- 35,0 mm
- Application
- Angle
- Ø Body (DG)
- 20,0 mm
- Weight
- 24,0 g
171,00 €excl. VAT
Longer delivery time
626107-6022-202
- Product Type
- Angle
- Length (L)
- 43,0 mm
- Angle 1 (W1)
- 90,0 °
- Angle 2 (W2)
- 15,0 °
- Material
- Titanium
- Connection Type
- M5 Pro
- Measurement Length (ML)
- 35,0 mm
- Application
- Angle
- Ø Body (DG)
- 20,0 mm
- Weight
- 24,0 g
154,00 €excl. VAT
Available
626107-6023-028
- Product Type
- Angle
- Length (L)
- 16,0 mm
- Angle 1 (W1)
- 65,0 °
- Angle 2 (W2)
- - 65,0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 10,0 mm
- Application
- Angle
- Ø Body (DG)
- 11,0 mm
- Weight
- 16,5 g
109,00 €excl. VAT
Made to Order
626105-6020-040
- Product Type
- Angle
- Length (L)
- 15,0 mm
- Length 1 (L1)
- 15,0 mm
- Angle 1 (W1)
- 40,0 °
- Material
- Aluminum
- Connection Type
- M5
- Application
- Connect
- Width (B)
- 12,0
- Weight
- 11,0 g
- Connection Type Out
- M5
109,00 €excl. VAT
Longer delivery time
626105-6020-030
- Product Type
- Angle
- Length (L)
- 15,0 mm
- Length 1 (L1)
- 15,0 mm
- Angle 1 (W1)
- 30,0 °
- Material
- Aluminum
- Connection Type
- M5
- Application
- Connect
- Width (B)
- 12,0
- Weight
- 11,0 g
- Connection Type Out
- M5
109,00 €excl. VAT
Available
626107-6022-045
- Product Type
- Angle
- Length (L)
- 43,0 mm
- Angle 1 (W1)
- 0,0 °
- Angle 2 (W2)
- 45,0 °
- Material
- Titanium
- Connection Type
- M5 Pro
- Measurement Length (ML)
- 35,0 mm
- Application
- Angle
- Ø Body (DG)
- 20,0 mm
- Weight
- 24,0 g
154,00 €excl. VAT
Available
626107-6021-045
- Product Type
- Angle
- Length (L)
- 25,0 mm
- Angle 1 (W1)
- 0,0 °
- Angle 2 (W2)
- 45,0 °
- Material
- Titanium
- Connection Type
- M5 Pro
- Measurement Length (ML)
- 17,0 mm
- Application
- Angle
- Ø Body (DG)
- 20,0 mm
- Weight
- 17,0 g
131,00 €excl. VAT
Longer delivery time
626105-6280-010
- Product Type
- Angle
- Length (L)
- 30,5 mm
- Angle 1 (W1)
- 90,0 °
- Connection Type
- M5
- Measurement Length (ML)
- 25,0 mm
- Application
- Connect
- Ø Body (DG)
- 11,0 mm
- Weight
- 9,0 g
- Connection Type Out
- M5
89,00 €excl. VAT
Available
626105-6280-040
- Product Type
- Rotary Elements
- Length (L)
- 40,0 mm
- Material
- Titanium
- Connection Type
- M5
- Application
- Connect
- Ø Body (DG)
- 11,0 mm
- Weight
- 16,0 g
- Connection Type Out
- M5
139,00 €excl. VAT
Longer delivery time
626107-6022-060
- Product Type
- Angle
- Length (L)
- 43,0 mm
- Angle 1 (W1)
- 0,0 °
- Angle 2 (W2)
- 60,0 °
- Material
- Titanium
- Connection Type
- M5 Pro
- Measurement Length (ML)
- 35,0 mm
- Application
- Angle
- Ø Body (DG)
- 20,0 mm
- Weight
- 24,0 g
171,00 €excl. VAT
Longer delivery time
626105-6280-060
- Product Type
- Star Element
- Length (L)
- 25,0 mm
- Angle 1 (W1)
- 90,0 °
- Material
- Titanium
- Connection Type
- M5
- Measurement Length (ML)
- 20,0 mm
- Application
- Connect
- Ø Body (DG)
- 11,0 mm
- Width (B)
- 13,0
- Weight
- 10,0 g
162,00 €excl. VAT
Longer delivery time
626107-6020-505
- Product Type
- Angle
- Length (L)
- 16,0 mm
- Angle 1 (W1)
- 16,7 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 10,0 mm
- Application
- Angle
- Ø Body (DG)
- 11,0 mm
- Weight
- 9,5 g
- Connection Type Out
- M5
78,00 €excl. VAT
Longer delivery time
626107-6023-020
- Product Type
- Angle
- Length (L)
- 16,0 mm
- Angle 1 (W1)
- 49,0 °
- Angle 2 (W2)
- - 49,0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 10,0 mm
- Application
- Angle
- Ø Body (DG)
- 11,0 mm
- Weight
- 16,5 g
109,00 €excl. VAT
Made to Order
626119-0001-019
- Product Type
- Screw
- Connection Type
- M5
- Application
- Connect
10,00 €excl. VAT
Available
626107-6020-030
- Product Type
- Angle
- Length (L)
- 16,0 mm
- Angle 1 (W1)
- 30,0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 10,0 mm
- Application
- Angle
- Ø Body (DG)
- 11,0 mm
- Weight
- 9,5 g
- Connection Type Out
- M5
86,00 €excl. VAT
Available
626107-6023-030
- Product Type
- Angle
- Length (L)
- 16,0 mm
- Angle 1 (W1)
- 52,0 °
- Angle 2 (W2)
- - 18,0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 10,0 mm
- Application
- Angle
- Ø Body (DG)
- 11,0 mm
- Weight
- 16,5 g
109,00 €excl. VAT
Longer delivery time
626105-6020-065
- Product Type
- Angle
- Length (L)
- 15,0 mm
- Length 1 (L1)
- 15,0 mm
- Angle 1 (W1)
- 65,0 °
- Material
- Aluminum
- Connection Type
- M5
- Application
- Connect
- Width (B)
- 12,0
- Weight
- 11,0 g
- Connection Type Out
- M5
117,00 €excl. VAT
Made to Order
626107-6022-201
- Product Type
- Angle
- Length (L)
- 43,0 mm
- Angle 1 (W1)
- 0,0 °
- Angle 2 (W2)
- 10,0 °
- Material
- Titanium
- Connection Type
- M5 Pro
- Measurement Length (ML)
- 35,0 mm
- Application
- Angle
- Ø Body (DG)
- 20,0 mm
- Weight
- 24,0 g
171,00 €excl. VAT
Made to Order
626107-6020-486
- Product Type
- Angle
- Length (L)
- 16,0 mm
- Angle 1 (W1)
- 75,5 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 10,0 mm
- Application
- Angle
- Ø Body (DG)
- 11,0 mm
- Weight
- 9,5 g
- Connection Type Out
- M5
78,00 €excl. VAT
Longer delivery time
626107-6023-014
- Product Type
- Angle
- Length (L)
- 16,0 mm
- Angle 1 (W1)
- 90,0 °
- Angle 2 (W2)
- 9,0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 10,0 mm
- Application
- Angle
- Ø Body (DG)
- 11,0 mm
- Weight
- 16,5 g
109,00 €excl. VAT
Longer delivery time
626107-6023-017
- Product Type
- Angle
- Length (L)
- 16,0 mm
- Angle 1 (W1)
- 0,0 °
- Angle 2 (W2)
- 78,0 °
- Material
- Titanium
- Connection Type
- Cone Adapter
- Measurement Length (ML)
- 10,0 mm
- Application
- Angle
- Ø Body (DG)
- 11,0 mm
- Weight
- 16,5 g
109,00 €excl. VAT
Made to Order
626107-6022-755
- Product Type
- Angle
- Length (L)
- 43,0 mm
- Angle 1 (W1)
- 230,3 °
- Angle 2 (W2)
- 38,1 °
- Material
- Titanium
- Connection Type
- M5 Pro
- Measurement Length (ML)
- 35,0 mm
- Application
- Angle
- Ø Body (DG)
- 20,0 mm
- Weight
- 24,0 g
171,00 €excl. VAT
Longer delivery time
