Extensions (382)

In the tactile measurement of workpieces, the features that need to be measured may be difficult to access. In this case a stylus extension is required. While metal extensions are acceptable for touch trigger sensors, carbon fiber solutions are increasingly conquering the world of scanning tactile sensors.
Adapter plate VAST with REACH CFX 3 extension, cube 15
626107-2080-930
Length (L)
80,0 mm
Measuring Length (ML)
121,5 mm
526,00 €Sales tax not included
 Delivery time: 2 days

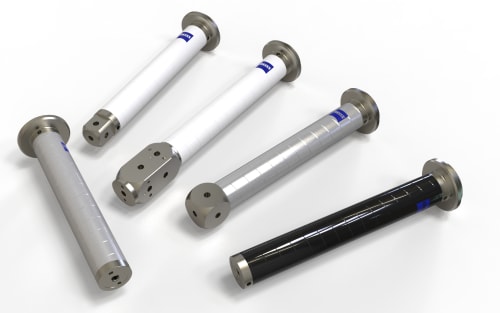

REACH CFX 3 - Plate extension VAST, M5 threaded cube
626107-2047-140
Length (L)
47,0 mm
Measuring Length (ML)
73,0 mm
231,00 €Sales tax not included
 Delivery time: > 30 days
Adapter plate VAST, index holes, REACH CFX 3+
626107-2040-941
Measuring Length (ML)
71,5 mm
408,00 €Sales tax not included
 Delivery time: 5 days
REACH CFX 3 - Plate extension VAST, M5 threaded cube
626107-2200-130
Length (L)
200,0 mm
Measuring Length (ML)
241,5 mm
302,00 €Sales tax not included
 Delivery time: 2 days
Plate extension VAST, double cube, REACH CFX 3+
626107-2060-163
Length (L)
60,0 mm
Measuring Length (ML)
130,1 mm
332,00 €Sales tax not included
 Delivery time: 2 days
REACH CFX 3 - Plate extension VAST, M5 threaded cube
626107-2200-110
Length (L)
200,0 mm
Measuring Length (ML)
246,5 mm
302,00 €Sales tax not included
 Delivery time: 6 days
REACH CFX 3 - Extension, M5
626107-2150-100
Length (L)
150,0 mm
144,00 €Sales tax not included
 Delivery time: 2 days
REACH CFX 1 - Extension, M5
626107-2400-300
Length (L)
400,0 mm
90,00 €Sales tax not included
 Delivery time: 2 days
REACH CFX 3 - Extension, M5
626107-2120-100
Length (L)
120,0 mm
134,00 €Sales tax not included
 Delivery time: 2 days

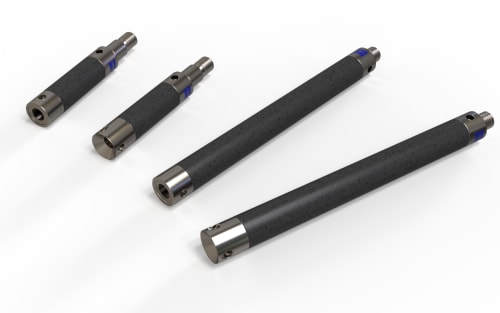

REACH CFX 1 - Extension, M3 XXT
626103-5050-000
Length (L)
50,0 mm
61,00 €Sales tax not included
 Express: Shipment today
 Delivery information
The perfect extension for your accuracy requirements

The perfect extension for your accuracy requirements

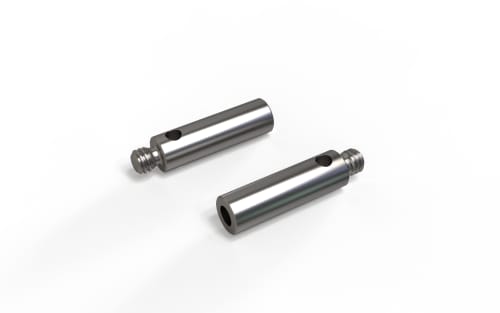

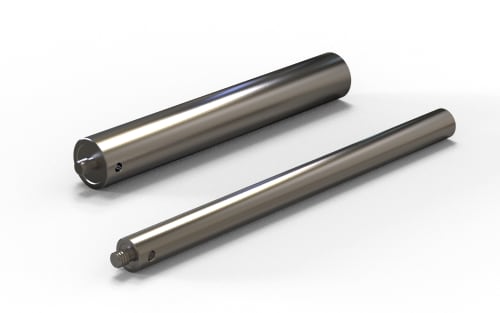

The measured values that the coordinate measuring machine records depend on how well the probe system perceives the surface properties. The stylus picks up the data directly from the component and transmits them to the probe head via the extensions and the adapter plate. Therefore, as part of the overall probe system, extensions have a significant influence on measuring accuracy. For touch trigger sensors - such as the M2 and M3 systems - the extensions are still made of metal, as the material has little effect on the measurement uncertainty compared to scanning technology. For tactile scanning sensors, ZEISS REACH CFX carbon fiber extensions are very useful in every segment, whether they are entry level or designed for maximum precision. Titanium and aluminum are older technology, because ZEISS REACH CFX carbon fiber extensions are not only light and stable in length, but also resistant to bending and torsion. This reduces deviations by up to five times and helps to prevent expensive wrong decisions due to inaccurate measuring results
REACH CFX for your accuracy requirements

REACH CFX for your accuracy requirements

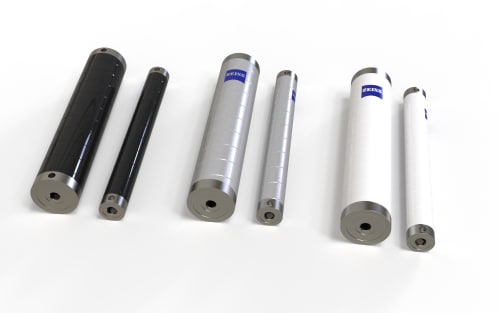

The three versions of the extensions, ZEISS REACH CFX 1, CFX 3 and CFX 5, are tailored to the price levels and accuracy requirements of coordinate measuring machines (CMMs). CFX 1 is on a par with extensions made of titanium or aluminum in terms of price, but performs significantly better than metal in terms of precision. CFX 3 has a significantly higher accuracy compared to the CFX 1 extensions. ZEISS REACH CFX 5 rounds off the portfolio and meets the highest technical requirements. This quality is unsurpassed on the market. We recommend ZEISS REACH CFX 1 for: ZEISS SPECTRUM, ZEISS CONTURA and comparable CMMs ZEISS REACH CFX 3 for: ZEISS PRISMO, ZEISS PRISMO fortis, ZEISS ACCURA and similar CMMs ZEISS REACH CFX 5 for: ZEISS PRISMO verity, ZEISS PRISMO ultra, ZEISS MICURA, ZEISS XENOS and similar CMMs.
